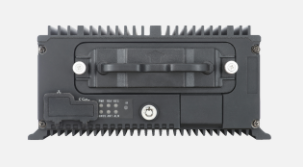

8-ch 1080p, H.265, 2 x HDD/SSD Mobile NVR

Código: 2252000570790 | Modelo:

  • Supports 8-ch 2 MP IP cameras via PoE interfaces
  • Efficient H.265 compression technology
  • Supports up to 2 × 2.5 inch HDDs/SSDs (up to 2 TB for each), 1 × SD (up to 256 GB)
  • Supports 3G/4G and Wi-Fi modules for communication
  • Supports GPS positioning
  • Video/Audio Input
  • Câmera IP16 in total: 8 IP cameras connected via PoE interfaces, 8 IP cameras extendable via PoE interfaces
  • Áudio Bidirecional1, integrated in EXT.DEV interface
  • Video/Audio Output
  • Saída De Vídeo1 CVBS output (PAL: 704 × 576, NTSC: 704 × 480), 1 VGA output (1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768)
  • Saída De Áudio1
  • Armazenamento
  • HD/SSD

    2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD

    Dummy HDD with USB 3.0 interface

  • Cartão SD1 × SD card, up to 256 GB
  • Interface Externa
  • Interface De Rede2 × 10M/100M/1000M RJ45 Ethernet interface
  • Interface USB

    Front panel: 1 × USB 3.0

    Rear panel: 1 × USB 2.0 of 5-pin aviation plug

  • Entrada De Alarme4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input (reserved)
  • Saída De Alarme2 relay signal outputs
  • Porta Serial2 × RS-232. 1 × RS-485. 1 × RS-422 (integrated in EXT.DEV interface)
  • Interface De CAN2
  • Entrada De Sensor4 high/low level signal inputs
  • Rede Sem Fio
  • Discagem 3G/4G1 × 3G/4G card slot, 1 × Rosenberger antenna
  • Wi-Fi

    WI58 model: 2 × 5.8 G Wi-Fi SMA antenna

    WI model: 1 × 2.4 G Wi-Fi SMA antenna

  • Geral
  • Temperatura De Funcionamento

    Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to 140°F)

    Other devices: -10 °C to +60 °C (14 °F to 140°F)

  • Umidade De Funcionamento10% to 95%
  • Fonte De Alimentação9 to 32 VDC
  • Consumo

    Standby: ≤ 0.5 W

    Full load: ≤ 99 W

    Note: Without peripheral and storage media ≤ 20 W

  • Método De FuncionamentoMouse, IR remote control, Web control, and touchscreen
  • Dimensões (L×P×A)202 × 267.6 × 93.9 mm (7.95 × 10.5 × 3.7 inch)
  • Peso (Sem Mídia De Armazenamento)3.66 kg (8.07 lb)
  • Posicionamento
  • GNSS (Sistema Global De Satélites De Navegação)GPS (Global Positioning System), 1 × Rosenberger antenna
  • Encoding/Decoding Parameters
  • Compressão De VídeoH.264, H.265
  • Resolução De CodificaçãoMain stream: 1080p/720p/WD1/4CIF, sub-stream: 4CIF/2CIF/CIF
  • Taxa De QuadrosPAL: 1 to 25fps; NTSC: 1 to 30fps
  • Compressão De ÁudioG.722
  • Tipo De TransmissãoVideo, video & audio
  • Taxa De Bits De Áudio16 Kbps
  • Transmissão DuplaSupported
  • PoE
  • Interface PoE8 × RJ45 PoE interface
  • Consumo Máximo51 W
