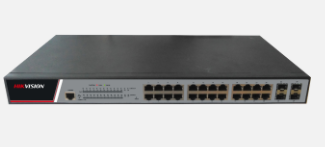

24 Port Gigabit Full Managed POE Switch (19)98728-0208 (19)3324-3637 Campinas São Paulo Barão Geraldo Paulínia Sumaré Valinhos Vinhedo Indaiatuba Jundiaí Americana Piracicaba Cosmopolis Sousas Hortolândia

DS-3E2528P supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers
DS-3E2528P has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods
DS-3E2528P supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade
DS-3E2528P supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy
DS-3E2528P supports IEEE 802.3AF/AT standard, built-in large power supply, no need of external power supply, that is, 24-port AF full-load power supply.
DS-3E2528P supports the configuration of Base-T port priority when the power is inadequate.
DS-3E2528P supports POE port and up to 4KV power thunder-proof.
DS-3E2528P supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services
DS-3E2528P provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services
DS-3E2528P supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”
Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions
Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+
DS-3E2528P supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions
DS-3E2528P supports perfect ring detection mechanism which ensures the long-term stable running of network
DS-3E2528P supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security
DS-3E2528P supports many management modes such as the console port, Telnet, SSH
DS-3E2528P supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient
DS-3E2528P supports TFTP-patterned file upload/download management

Principais Recursos
QoS
Flow classification based on L2~4 protocols

CAR flow limit

802.1P/DSCP priority re-labeling

SP, WRR, and “SP+WRR”

Congestion avoidance mechanisms like Tail-Drop and WRED

Flow monitoring and flow shaping
STP
802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)

BPDU protection, root protection, and loopback protection
Multicast
IGMP v1/v2/v3

IGMP snooping

IGMP Fast Leave

Multicast group strategy and quantity limitation
Segurança
L2/L3/L4 ACL flow identification and filtration

DDoS attack prevention, TCP’s SYN Flood attack prevention, UDP Flood attack prevention, etc

Broadcast/multicast/unknown unicast storm-control

Port isolation

Port security, and “IP+MAC+port” binding
Manutenção Gerencial
Console, Telnet, SSH2.0, Web

SNMP v1/v2/v3

TFTP

RMON

PoE Power Supply
Padrão De PoEIEEE802.3af, IEEE802.3at
Potência De Alimentação De PoE380W

Network Parameters
Número De Porta24 x 10/100/1000Base-T PoE ports, 4 1000Base-X SFP ports, 1 Console port
Tabela De Endereços MAC8K
Capacidade Do Switch56Gbps
Taxa Máxima De Pacote42Mpps
