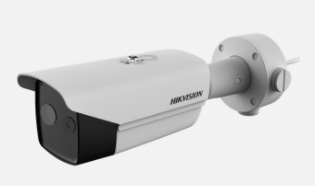

Thermographic Thermal & Optical Bi-spectrum Network Bullet Camera (19)98728-0208 Campinas São Paulo Barão Geraldo Paulínia Sumaré Valinhos Vinhedo Indaiatuba Jundiaí Americana Piracicaba Cosmopolis Sousas Hortolândia

High sensitivity thermal module with 384 x 288 resolution
NETD is less than 40 mk (@25° C, F#=1.0)
Supports contrast adjustment
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Up to 15 palettes of adjustable color
Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
Reliable temperature-anomaly alarm
Advanced fire detection algorithm
High quality optical module with 2 MP resolution
Bi-spectrum image fusion, picture-in-picture preview

Optical Module
Sensor De Imagem1/2.8” Progressive Scan CMOS
Resolução1920 × 1080, 2 MP
Iluminação MínimaColor: 0.002 Lux @(F1.5,AGC ON), B/W: 0.0002 Lux @(F1.5, AGC ON)
Field Of View52.8° × 30.0°(H × V)
Distância Focal6 mm
Modo De FocoFixed
Velocidade Do Obturador1s to 1/100,000s
Balanço De BrancoAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Modo Dia/NoiteIR cut filter with auto switch
WDRDigital

Image Effect
Fusão De Imagem BiespectralDisplay the details of optical channel on thermal channel
Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel

Funções Inteligentes
VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules totally.
Medição De TemperaturaSupport 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
Temperature Range-20 °C to 550 °C (-4 °F to 1022 °F)
Precisão De TemperaturaMax (±2 °C, ±2 %)
Detecção De IncêndioDynamic fire point detection, up to 10 fire points detectable.

Video And Audio
Main Stream
Thermal:

50 fps (1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical:

50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);Optical:

60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Transmissão Secundária
Thermal: 50 fps (704 × 576, 384 × 288, 352 × 288);Optical:

50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:

60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
Compressão De VídeoH.264 (Baseline/Main/High Profile) /MJPEG/H.265, H.264+, H.265+
Compressão De ÁudioG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
APIOpen-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
SegurançaUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Visualização Ao Vivo SimultâneaUp to 20 channels

Interface
ClientiVMS-4200, Hik-Connect
Navegador Da WebPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
Entrada De Alarme2-ch inputs (0-5vDC)
Saída De Alarme2-ch relay outputs, alarm response actions configurable
Ações De AlarmeSD recording/Relay output/Smart capture/FTP upload/Email linkage
Entrada De Áudio1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Saída De ÁudioLinear Level; Impedance: 600 Ω
RS4851, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
Saída De Vídeo Analógico1.0 V [p-p]/75 Ω, BNC for thermal channel
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

1, RS-485 interface
Armazenamento IntegradoBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording

Geral
Idioma Do Web Client
32 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
LimpadorNo
Nível De Usuário/HostUp to 32 users, 3 levels: Administrator, Operator, User
AlimentaçãoPoE (802.3at, class 4), 42.5 V to 57 V, 0.35 A to 0.47 A;DC 12V, 1.6A
Consumo De Energia
24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.6 A, max. 20W

PoE (802.3at, class 4): 42.5 V to 57 V, 0.35 A to 0.47 A
Temperatura/Umidade De FuncionamentoFrom -40°C to 65°C (-40°F to 149°F); Humidity: 90% or Less
Nível De ProteçãoIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensões352.4 mm × 113.5 mm × 114.7 mm (13.9 " × 4.5" × 4.5 ")
Approx. 1.55Kg (3.42lb)
