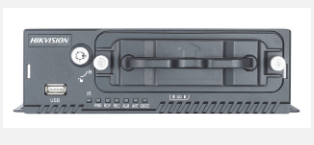

4-ch 720p, H.264, 1 x HDD/SSD Mobile DVR

Compra mínima: unidade(s)

Compra máxima: unidade(s)

Armazenamento
HD/SSD1 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD,A dummy HDD with USB 3.0 interface
Cartão SD1 × SD card, up to 256 GB

Geral
Temperatura De FuncionamentoDevice that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to 140°F), Other devices: -10 °C to +60 °C (14 °F to 140°F)
Umidade De Funcionamento10% to 90%
Fonte De Alimentação9 to 32 VDC
ConsumoStandby: ≤ 0.5 W,Full load: ≤ 45 W (without peripheral and storage media),Note: Without peripheral and storage media ≤ 20 W
Método De FuncionamentoMouse, IR remote control, Web control, and touchscreen
Dimensões (L×P×A)206 × 219 × 60 mm (8.1 × 8.62 × 2.36 inch)
Peso (Sem Mídia De Armazenamento)1.6 kg (3.5 lb)

Posicionamento
GNSS (Sistema Global De Satélites De Navegação)GPS (Global Positioning System), 1 ×Rosenberger antenna

Rede Sem Fio
Discagem 3G/4G1 × 3G/4G card, 1 ×Rosenberger antenna
Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna, WI model: 1 × 2.4 G Wi-Fi SMA antenna

External Interface
Interface De Rede1 × 10M/100M RJ45 Ethernet interface
Porta Serial2 × RS-232, 1 × RS-422 (integrated in EXT.DEV interface)
Interface USBFront panel: 1 × USB 2.0,Rear panel: 1 × USB 2.0 of 5-pin aviation connector
Entrada De Sensor4 high/low level signal inputs
Entrada De Alarme4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
Saída De Alarme2 relay signal outputs
