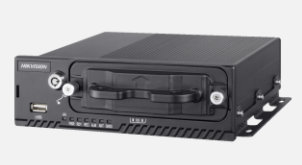

4-ch 1080p, H.265, 1xHDD/SSD Mobile DVR

Código: 2251000570660 | Modelo:

  • Supports 4-ch 2 MP analog cameras and 4-ch 2 MP IP cameras
  • Efficient H.265 compression technology
  • Supports 1 × 2.5 inch HDD/SSD (up to 2 TB for each), and 1×SD (up to 256 GB)Supports 3G/4G and Wi-Fi modules for communication
  • Supports GPS positioning
  • Video/Audio Input
  • Câmera Analógica4 analog cameras, up to 1080p resolution
  • Câmera IP4 IP cameras, up to 1080p resolution (extendable via PoE switch)
  • Áudio Bidirecional1, integrated in EXT.DEV interface
  • Armazenamento
  • HD/SSD1 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD;A dummy HDD with USB 3.0 interface
  • Cartão SD1 × SD card, up to 256 GB
  • Geral
  • Temperatura De Funcionamento

    Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to +140°F)

    Other devices: -10 °C to +60 °C (+14 °F to +140°F)

  • Umidade De Funcionamento10% to 95%
  • Fonte De Alimentação9 to 32 VDC
  • Consumo

    Standby: ≤ 0.5 W

    Full load: ≤ 45 W

    Note: Without peripheral and storage media ≤ 20 W

  • Método De FuncionamentoMouse, IR remote control, Web control, and touchscreen
  • Dimensões (L×P×A)206 × 225.4 × 60.1 mm (8.1 × 8.87 × 2.37 inch)
  • Peso (Sem Mídia De Armazenamento)1.7 kg (3.7 lb)
  • Posicionamento
  • GNSS (Sistema Global De Satélites De Navegação)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 × Rosenberger antenna
  • Video/Audio Output
  • Saída De Vídeo

    Main output: 1, integrated in EXT.DEV interface

    VGA: 1



  • Saída De Áudio1
  • Encoding/Decoding Parameters
  • Compressão De VídeoH.264/H.265
  • Resolução De CodificaçãoMain stream: 1080p/720p/WD1/4CIF;Sub-stream: 720P/WD1/4CIF/2CIF/CIF
  • Taxa De QuadrosPAL: 1 to 15 fps@1080P; NTSC: 1 to 15 fps@1080P; PAL: 1 to 25 fps@720P; NTSC: 1 to 30 fps@720P
  • Compressão De ÁudioG.711/G.722.1
  • Tipo De TransmissãoVideo, video & audio
  • Taxa De Bits De Áudio16 Kbps
  • Transmissão DuplaSupported
  • Rede Sem Fio
  • Discagem 3G/4G1 × 3G/4G card slot, 1 × Rosenberger antenna
  • Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna
  • External Interface
  • Interface De Rede1 × 10M/100M M12 6-pin aviation connector
  • Porta Serial2 × RS-232, 1 × RS-422 (integrated in EXT.DEV interface)
  • Interface USB

    Front panel: 1 × USB 2.0

    Rear panel: 1 × USB 2.0 (5-pin aviation connector)



  • Entrada De Sensor4 high/low level signal inputs
  • Entrada De Alarme4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
  • Saída De Alarme2 relay signal outputs
